Electroluminescence/Photoluminescence

PanEL-Spot

Laboratory system for Electroluminescence imaging of solar cells & panels

Take the next step in PV quality control with the PanEL-Spot system

PanEL Includes

Full-Frame sensor camera for wide field of view and high resolution, modified for sensitivity to IR wavelengths
Camera memory card, power and data cables
Programmable EL power supply, controlled by system software
Power cables from power supply to PV module – ring terminal to MC4
Black metal enclosure for power supply, includes drawer for storage and large surface area for PV cell or small module imaging
RGB LED light for illuminating working surface of metal enclosure
Multi-position camera mounting arm
Collapsable stand with adjustable leg height on which to place metal enclosure
IMPEL software on a Windows laptop
No-charge software upgrades and usage assistance for two years
Wireless barcode scanner
Training includes manual and videos, plus a no-charge online training session

Specifications

Camera:

Resolution: 24.3 MP
Lens: 35 mm
Filters: 1000 nm long pass

Power Supply:

Input Voltage Range:100-120V AC 60 Hz or 220 240V AC 50 Hz
Output: Up to 15A, 60V DC
Custom high-voltage power supplies available
MC4 Cables: 5m or desired length

Laptop Computer:

Processor: AMD Ryzen 5 8645HS
Storage: 512 GB
Screen Size: 16 in.
Power Supply Enclosure:
Dimensions: 51 cm x 57 cm

Collapsable Stand:

Adjustable Height: 10 – 24 in.

Barcode Scanner: 1D & 2D (QR code)

Total System Weight with standard power supply: 27 kg

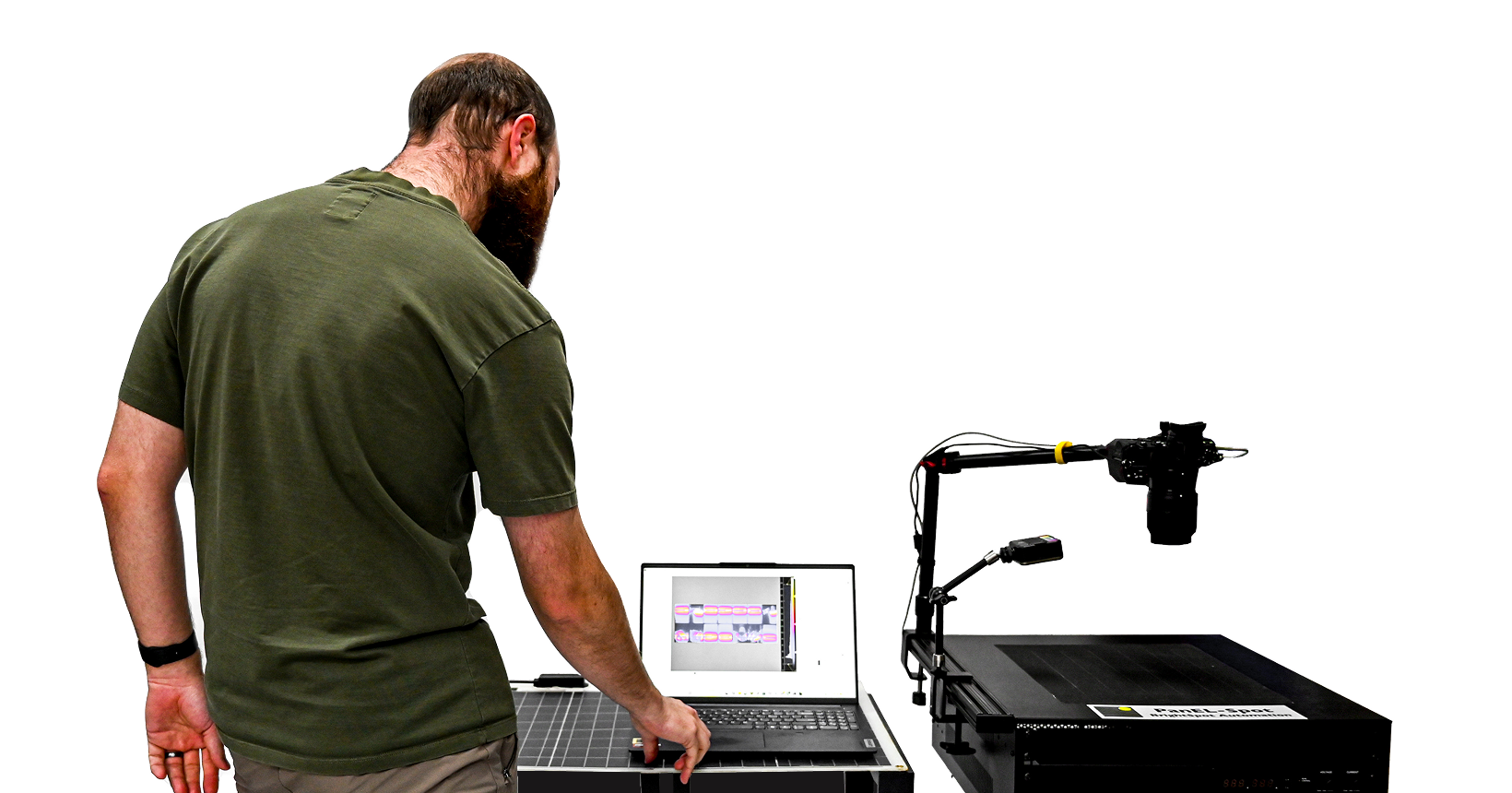

Image cells on the enclosure surface or panels at a distance

BrightSpot integrates hardware components (specialized camera, EL/PL power supply, PL Lamps, and optional filter wheel) with its IMPEL software for device control as well as image capture and processing. Recipes make it easy to replicate camera and power supply parameters as well as image contrast enhancement and cropping.

Components

Full Frame Camera for IR wavelengths

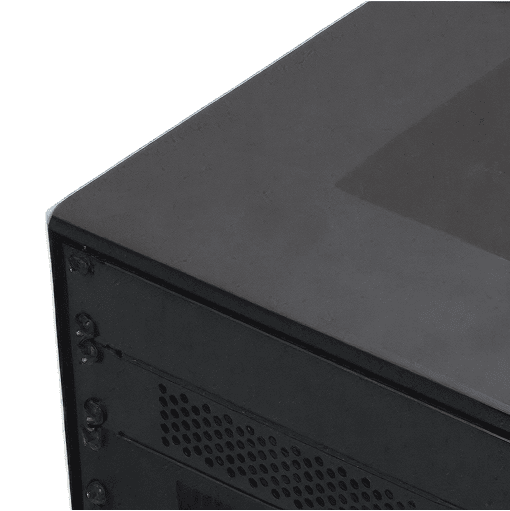

Imaging Surface with Black metal enclosure

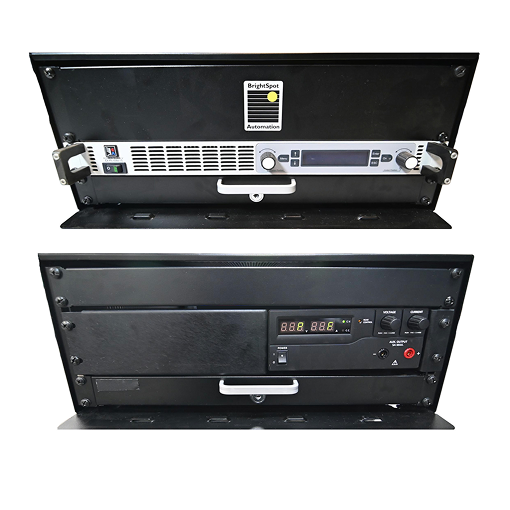

Standard or Higher Voltage PowerSupply

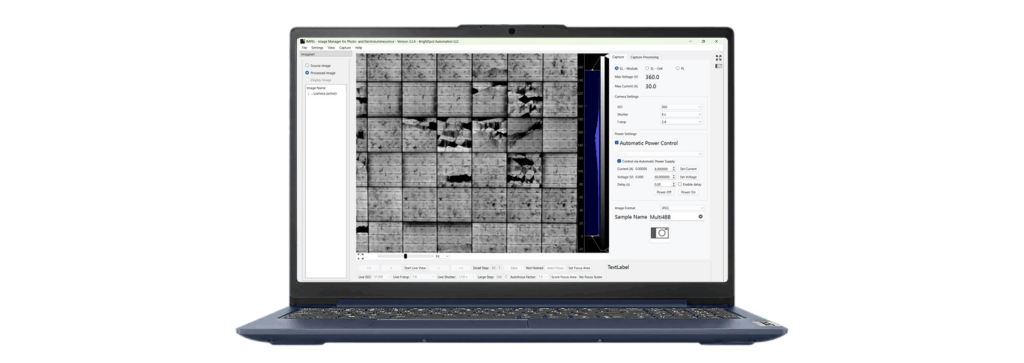

Laptop with
IMPEL Software

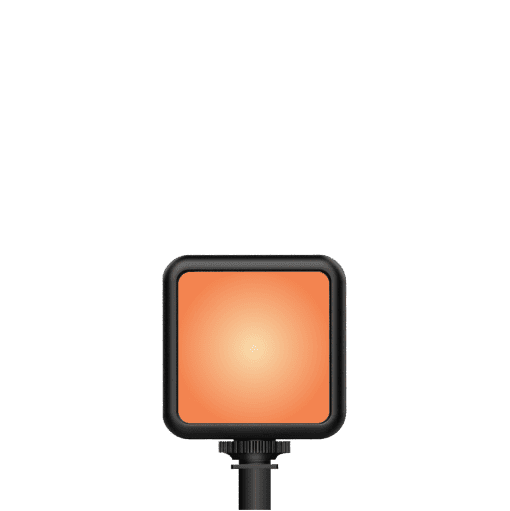

Work Lamp

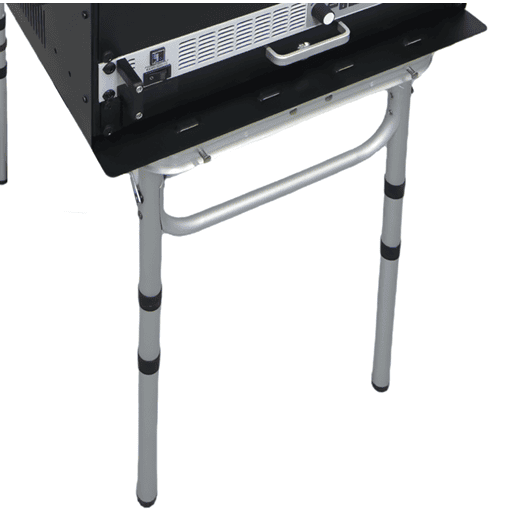

Height Adjustable Collapsable Stand

High Resolution EL Images

A sensitive, high resolution camera, quality lenses and filters, autofocus software, and flexible post processing software enable the capture of top-quality EL images

Need a Custom Solution?

Whether you’re testing next-gen tandem cells, working in a space-rated clean room, or need custom optics for your line, we can help. BrightSpot has built custom EL, PL, and UVF systems for some of the most demanding PV applications on Earth—and in orbit.

Contact us and discuss your needs with one of our experts.

Defects Seen in EL Imaging

EL can reveal a wide range of defects.

Hail
Damage

Inactive Cracked Segments

Drag Marks From Handling

Busbar/Wire
Defect

Use EL Video to Tell Your Story

All our cameras are also capable of capturing high-resolution video. Make convincing electroluminescence movies to aid product development and to market the superiority of your company’s products vs the competition.

“

BrightSpot was greatly helpful in designing and implementing custom stress tests to demonstrate the imperviousness of our marine solar panels to cell cracking, and their PanEL-Spot system works beautifully. In the coming months, we plan to implement their EL camera system into our production line.

– Simon Angus, Founder & CEO.

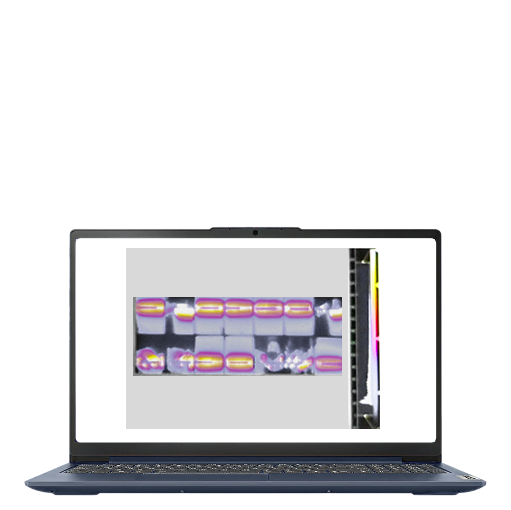

IMPEL Software

Control

IMPEL is the unified control platform for BrightSpot imaging systems, enabling seamless coordination of camera, light sources, and power supply. From a single interface, users can adjust exposure settings, trigger PL or EL sequences, and automate capture workflows across multiple system components.

Enhancement

Built-in image processing tools help users sharpen contrast, highlight defects, and visualize subtle variations in cell or panel performance. With support for custom filters and multispectral imaging, IMPEL ensures every captured frame delivers actionable insights, whether in R&D or field diagnostics.

Report

IMPEL simplifies documentation by generating detailed reports with embedded images, metadata, and measurement context. Export results for internal QA, client acceptance, or long-term traceability – standardized and ready to share.

BrightSpot’s proprietary IMPEL software for EL power supply control, image acquisition, and image processing

Electroluminescence/Photoluminescence

PanEL-Spot

Image cells on the enclosure surface or panels at a distance

Components

Full Frame Camera for IR wavelengths

Imaging Surface with Black metal enclosure

Standard or Higher Voltage PowerSupply

Laptop with IMPEL Software

Work Lamp

Height Adjustable Collapsable Stand

High Resolution EL Images

Need a Custom Solution?

Defects Seen in EL Imaging

Hail Damage

Inactive Cracked Segments

Drag Marks From Handling

Busbar/Wire Defect

Use EL Video to Tell Your Story

BrightSpot was greatly helpful in designing and implementing custom stress tests to demonstrate the imperviousness of our marine solar panels to cell cracking, and their PanEL-Spot system works beautifully. In the coming months, we plan to implement their EL camera system into our production line.

IMPEL Software
